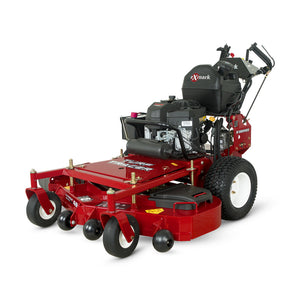

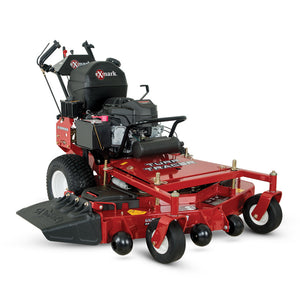

Exmark Turf Tracer S-Series with 18.5 HP* Kawasaki FS600V Engine and 48" UltraCut Series 3 Deck (TTS600GKA48E0)

GET MORE INFO
×
SKU: Exmark Turf Tracer S-Series with 18.5 HP* Kawasaki FS600V Engine and 48" UltraCut Series 3 Deck (TTS600GKA48E0)
Categories : Exmark
Inquire Now

Description:

With the Exmark Turf Tracer S-Series commercial walk-behind mower, you can choose from a variety of rugged engines. Then, match that power to cutting decks in 36-, 48-, and 52-inch widths. In whatever configuration you choose, you’ll get our patented Enhanced Control System (ECS) for ultimate operator comfort. Which translates to day-long operator productivity.

Specifications:

  • UPC: 193308000107
  • Starter: Electric
  • Fuel Type: Gas (Carbureted)
  • Fuel Capacity: 5 gallons (single tank, single fill)
  • Fuel Indicator: None
  • Carb Compliant: No
  • Curb Weight: 586 lbs

Engine

  • Brand: Kawasaki
  • Model: FS600V
  • Displacement: 603 cc
  • Series: V-Twin
  • Specification: AS26-R
  • Speed: 3,600 rpm
  • Fuel System: Carbureted
  • Air Filter: Standard
  • PTO Engagement: Electromagnetic, 105 ft-lb clutch
  • Electrical System: 12V battery with 15-amp alternator
  • Hour Meter: Standard

Drive System

  • Type: Hydro-Drive
  • Transmission: Twin Hydro-Gear variable-displacement pumps
  • Wheel Motors: Twin high-efficiency Parker/Ross with 1" tapered shafts
  • Speeds:
  • Forward: 0–6.2 mph
  • Reverse: 0–2.2 mph
  • Steering Control: ECS (Enhanced Control System), zero-turn capable
  • Transmission Brand: Hydro-Gear
  • Drive Wheel Release: Allows movement without engine running
  • Parking Brake: Lever-actuated mechanical compression

Deck

  • Deck Style: Floating (UltraCut Series 3)
  • Discharge: Side discharge standard, with mulch or bagging options
  • Cutting Width: 48 in
  • Deck Construction:
  • 10-gauge formed, seam-welded top
  • 7-gauge side skirts and welded spindle mounts
  • Cutting Heights: 1.5" to 4.5" (in 0.5" increments)
  • Deck Lift: Manual lift (hairpin adjustment)
  • Blade Spindles: Sealed, non-greasable
  • Spindle Housing: 7.75" diameter, 25mm shaft with splined blade driver
  • Blades: 3 blades, each 16.25"
  • Blade Tip Speed: ~18,500 fpm

Wheels

  • Front Casters: 9 x 3.5-4, smooth-tread, semi-pneumatic
  • Drive Tires (Rear): 16 x 7.5-8, 4-ply Turf Master®

Safety & Features

  • Safety Package: Operator Presence Controls (OPC)
  • Standard Features: Hour meter
  • Dimensions:
  • Length: 73.7 in
  • Width: 59.5 in
  • Height: 42 in
