Description:

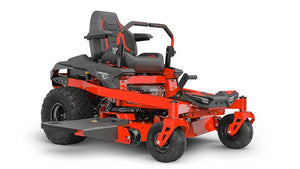

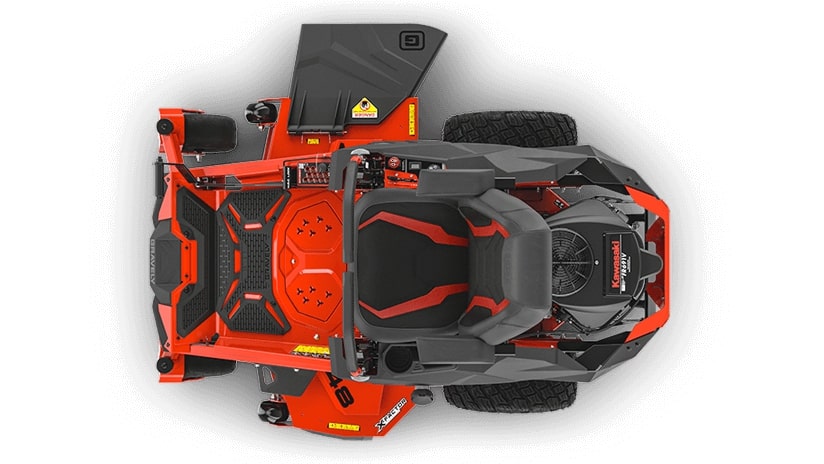

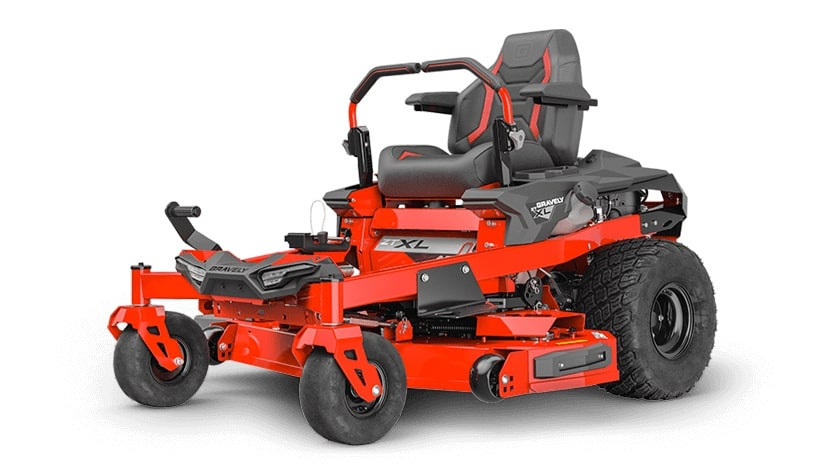

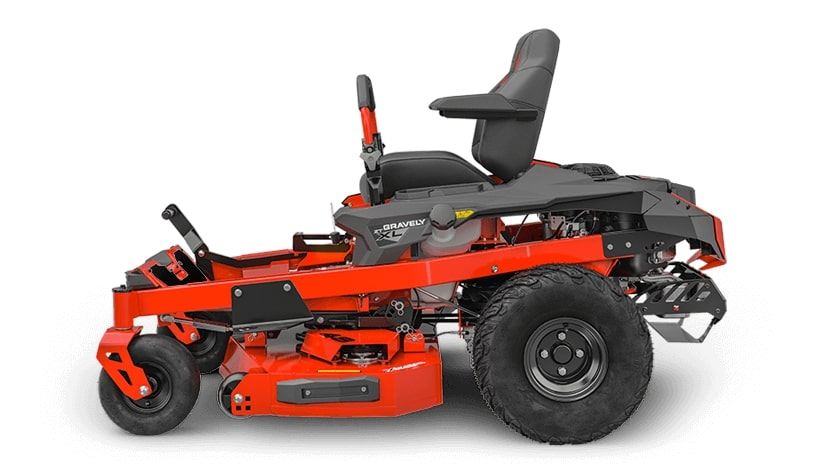

Built for big jobs, the ZT XL has been redesigned with vibration isolators and a high-back seat to combine professional cut quality and comfort. Out-maneuver any obstacle with more deck sizes to meet your demands.

Specifications:

Engine

• Engine Brand: Kawasaki® FR691V
• Horsepower: 23 hp
• Engine Displacement: 44.3 in³ / 726 cc
• Fuel System: Gas
• Fuel Capacity: 3.5 gal / 13.2 ltr

Drive System

• Drive System: Hydro-Gear® ZT-2800® Transaxles
• Transmission Type: Hydrostatic
• Brake Type: Integrated Parking Brake

Performance

• Ground Speed Forward: 7 mph / 11.3 kph
• Ground Speed Reverse: 3 mph / 4.8 kph

Wheels

• Front Wheels: 11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 27.9 cm)
• Rear Wheels: 20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm)

Electric

• Battery Capacity: 190 CCA
• Number of Batteries: 1
• Battery Voltage: 12 V
• Battery Type: AGM
• Battery Size: U1 Compatible

Deck

• Deck Size: 48 in / 121.9 cm
• Coverage Per Hour: 3.4 acres / 1.4 hectares
• Spindle Type: Mechanical
• Deck Material: 11 gauge
• Deck Construction: Fabricated X-Factor®
• Discharge Configuration: Side
• Cutting Height Min: 1.5 in / 3.8 cm
• Cutting Height Max: 4.5 in / 11.4 cm
• Cutting Width: 48 in / 121.9 cm

Dimensions

• Weight (Assembled): 689 lb
• Length: 74.5 in / 189.2 cm
• Width (Chute Up): 51.1 in / 129.8 cm
• Width (Chute Down): 62.3 in / 158.2 cm
