Description:

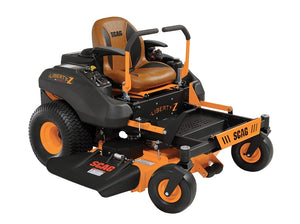

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Specification:

Cutting Width: 48″

Series: SR Series

Engine Power: 24 hp

Product Dimensions (48″ Liberty Z)

• Length: 67.5″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 41″
• Weight: 612 lb

General

• Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, fore/aft adjustment (tools required)

Drive System

• Transaxle: Tuff Torq TZ450
• Pump: Internal, 10 cc
• Motor: Internal, 10 cc
• Forward Speed: 7 mph
• Reverse Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Width: 48″
• Cutting Height: 1.5″ – 4.5″ (¼″ increments)
• Spindles: Aluminum housing with sealed ball bearings
• Construction: Dual-plate cutter deck (2 steel plates) + reinforcement plate at spindles
• Deck Lift: Foot-operated pedal
• Type: Heavy-Duty Hero Cutter Deck
• Blade Engagement: Ogura GT1 (74 ft-lb) electromagnetic clutch, adjustable air-gap
