Description:

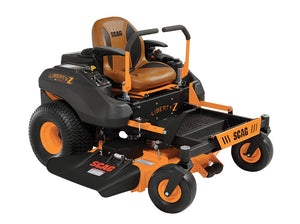

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Specifications:

• Model: SZL-52H-23FR
• Deck Size: 52″
• Engine: Kawasaki® FR Series
• Horsepower: 23 hp
• Length: 68.5″
• Width (Chute Down): 64.5″
• Width (Chute in Transport Position): 53″
• Height: 41″
• Weight: 646 lb

General

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

Drive System

• Drive System Type: Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Widths: 52″
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Spindles: Aluminum housing with sealed ball bearings
• Construction: Dual-plate cutter deck constructed of 2 steel plates with a reinforcement plate at cutter deck spindles
• Deck Lift: Foot-operated pedal
• Type: Heavy-Duty Hero Cutter Deck
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable air-gap for extended life
